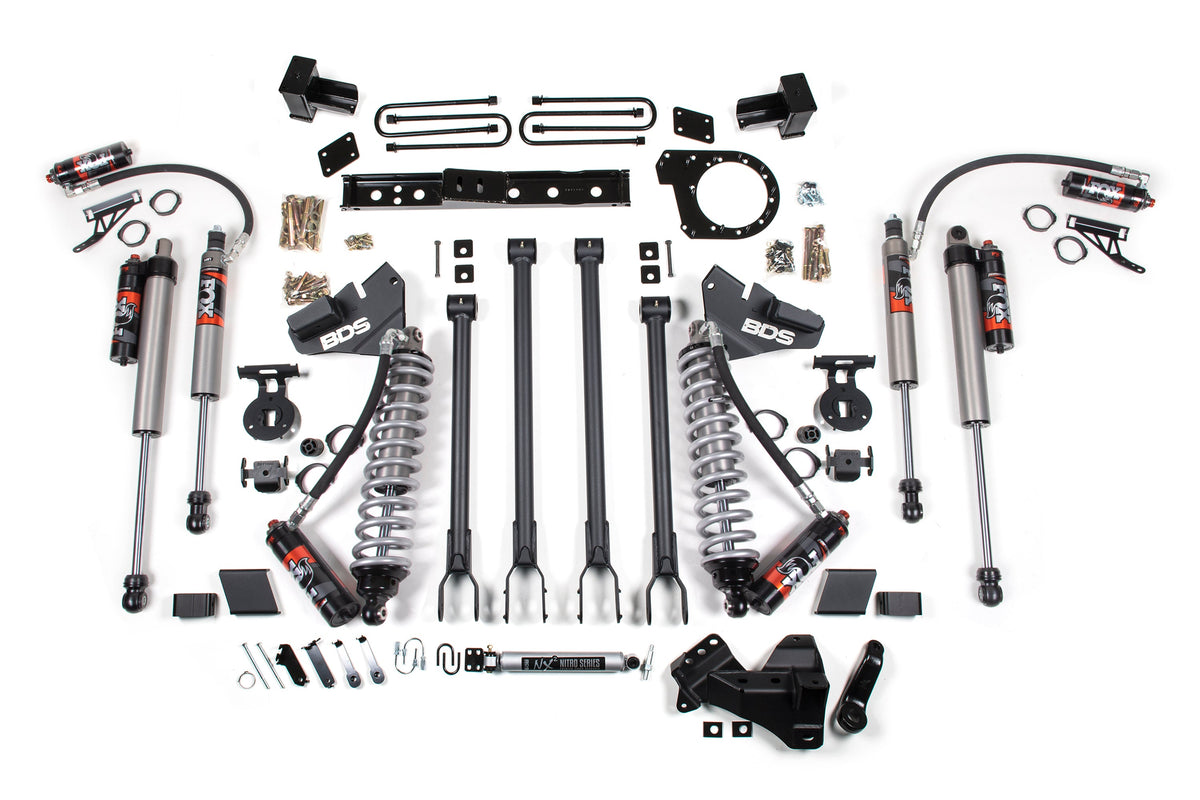

2017-2019 Ford F250/F350 4wd 6" 4-Link Suspension Lift Kit, 4" Rear, Block, Diesel, 3 Leaf Main - Fox 2.5 PES C/O Front, Fox 2.5 PES Aux Front, Fox 2.5 PES Rear

2017-2019 Ford F250/F350 4wd 6" 4-Link Suspension Lift Kit, 4" Rear, Block, Diesel, 3 Leaf Main - Fox 2.5 PES C/O Front, Fox 2.5 PES Aux Front, Fox 2.5 PES Rear

by BDS Suspension
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BDSS_BDS1979FPE
Sold out
$0.00 - $0.00
$7,290.50
$7,290.50 - $7,290.50
$7,290.50
Availability:
Out of stock
Request a quote

Product Tags:

OVERVIEW

Raise the bar on your 2017-2019 Ford F250 and F350 Ford Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear the base kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.



4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Features & Benefits

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 13.5 with 17 x 9 and 5 in. Backspace
  • 38 x 13.5 with 17 x 10 and 5 in. Backspace
  • 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option

5 Inch Block

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Leaf Springs

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Auxiliary Front and Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
IMPORTANT NOTES
  1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  2. 38 x 13.50 tires may require minor trimming.
  3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  4. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  5. If your truck is equipped with a factory rear sway bar add: BDS123808
  6. The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
  7. Fits SRW models only.

INSTALLATION

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Pitman Arm Puller

SPECIFICATION
  • Front Lift Method : Coil-Over
  • Front Lift Height : 6
  • Rear Lift Method : Block
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"

FITMENT
Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2017 Ford F-350 Super Duty XLT 4WD DIESEL
2017 Ford F-350 Super Duty Lariat 4WD DIESEL
2017 Ford F-350 Super Duty King Ranch 4WD DIESEL
2017 Ford F-350 Super Duty Platinum 4WD DIESEL
2017 Ford F-350 Super Duty XL 4WD DIESEL
2017 Ford F-250 Super Duty ALL 4WD DIESEL
2018 Ford F-350 Super Duty XLT 4WD DIESEL
2018 Ford F-350 Super Duty Limited 4WD DIESEL
2018 Ford F-250 Super Duty ALL 4WD DIESEL
2018 Ford F-350 Super Duty King Ranch 4WD DIESEL
2018 Ford F-350 Super Duty Lariat 4WD DIESEL
2018 Ford F-350 Super Duty XL 4WD DIESEL
2018 Ford F-350 Super Duty Platinum 4WD DIESEL
2019 Ford F-350 Super Duty Lariat 4WD DIESEL
2019 Ford F-250 Super Duty ALL 4WD DIESEL
2019 Ford F-350 Super Duty Platinum 4WD DIESEL
2019 Ford F-350 Super Duty Limited 4WD DIESEL
2019 Ford F-350 Super Duty King Ranch 4WD DIESEL
2019 Ford F-350 Super Duty XL 4WD DIESEL
2019 Ford F-350 Super Duty XLT 4WD DIESEL
