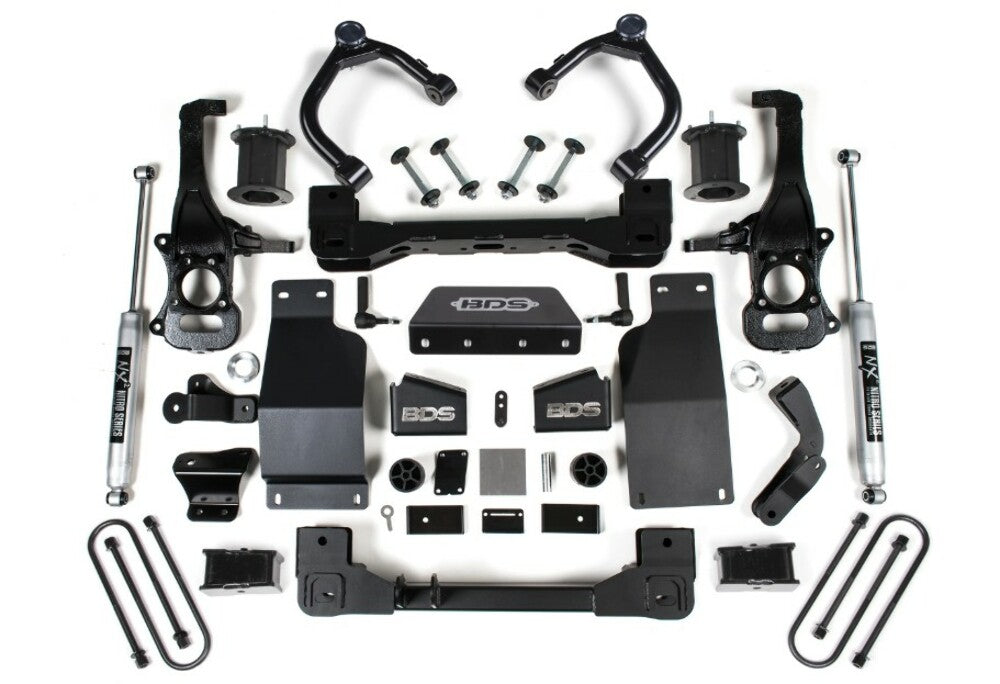

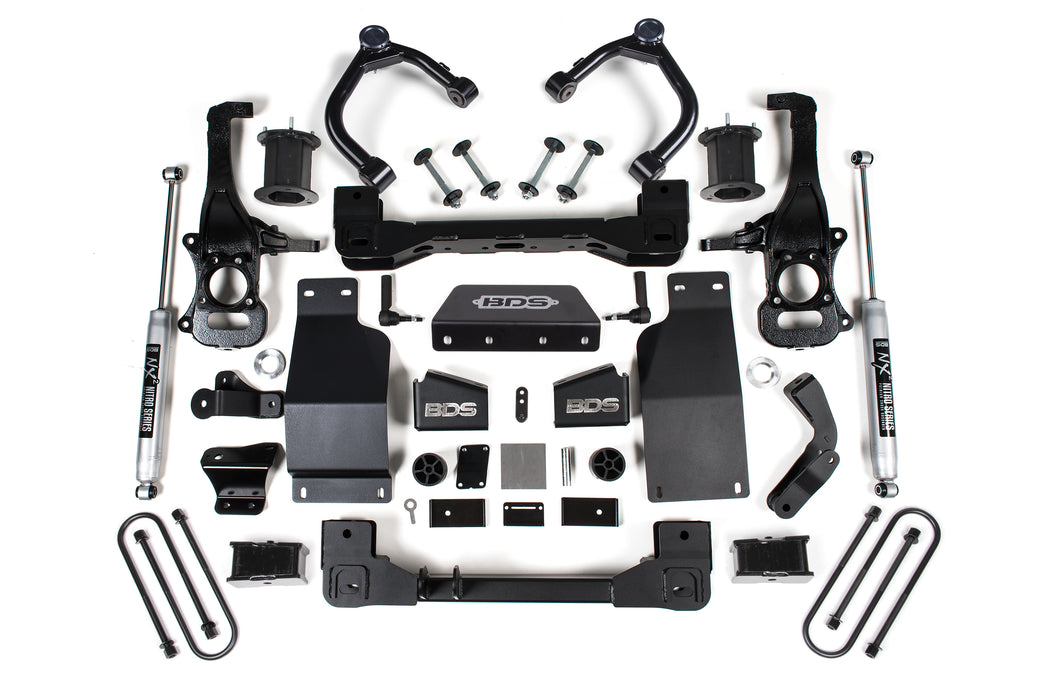

2025 Chevy/GMC 1500 4wd 4" Suspension Lift Kit, 3.0 Diesel / 2.7 Gas, 3" Rear, Block - Spacer Front, NX2 Rear

2025 Chevy/GMC 1500 4wd 4" Suspension Lift Kit, 3.0 Diesel / 2.7 Gas, 3" Rear, Block - Spacer Front, NX2 Rear

by BDS Suspension
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BDSS_BDS1853H
Sold out
$0.00 - $0.00
$1,947.46
$1,947.46 - $1,947.46
$1,947.46
Availability:
Out of stock
Request a quote

Product Tags:

OVERVIEW

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 6.25 in. Backspace

Front Shock Option

Strut Spacer

  • Made from heavy-duty steel that guarantees its durability
  • Maintains factory like ride quality
  • Fast and Easy to install

FOX 2.0 Performance Series

  • Custom-molded spring seat so you can reuse the stock spring and mounting hardware
  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
IMPORTANT NOTES
  1. Fits 4X4 Models only
  2. Does not work with models equipped with ARC.
  3. Does not work with Denali, High Country, ZR2, or AT4X models.
  4. Works on Diesel and 2.7 Gas models only.
INSTALLATION

Est. Install Time :

8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

36mm Socket, Cut Off Wheel or Equiv., Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

SPECIFICATION
  • Front Lift Method : Cross Member & Replacement Strut
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"
FITMENT
Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2025 Chevrolet Silverado 1500 WT 4WD GAS Front and Rear 4"
2025 GMC Sierra 1500 AT4 4WD DIESEL Front and Rear 4"
2025 Chevrolet Silverado 1500 LT Trail Boss 4WD DIESEL Front and Rear 4"
2025 GMC Sierra 1500 SLT 4WD DIESEL Front and Rear 4"
2025 GMC Sierra 1500 SLT 4WD GAS Front and Rear 4"
2025 Chevrolet Silverado 1500 Custom Trail Boss 4WD DIESEL Front and Rear 4"
2025 Chevrolet Silverado 1500 LT 4WD DIESEL Front and Rear 4"
2025 GMC Sierra 1500 SLE 4WD GAS Front and Rear 4"
2025 GMC Sierra 1500 Elevation 4WD GAS Front and Rear 4"
2025 Chevrolet Silverado 1500 Custom Trail Boss 4WD GAS Front and Rear 4"
2025 GMC Sierra 1500 Elevation 4WD DIESEL Front and Rear 4"
2025 Chevrolet Silverado 1500 LT Trail Boss 4WD GAS Front and Rear 4"
2025 GMC Sierra 1500 Pro 4WD FLEX Front and Rear 4"
2025 Chevrolet Silverado 1500 WT 4WD FLEX Front and Rear 4"
2025 Chevrolet Silverado 1500 RST 4WD GAS Front and Rear 4"
2025 Chevrolet Silverado 1500 LTZ 4WD DIESEL Front and Rear 4"
2025 GMC Sierra 1500 Pro 4WD GAS Front and Rear 4"
2025 Chevrolet Silverado 1500 PPV 4WD GAS Front and Rear 4"
2025 Chevrolet Silverado 1500 LT 4WD GAS Front and Rear 4"
2025 Chevrolet Silverado 1500 RST 4WD DIESEL Front and Rear 4"
2025 Chevrolet Silverado 1500 Custom 4WD GAS Front and Rear 4"
2025 GMC Sierra 1500 AT4 4WD GAS Front and Rear 4"
2025 GMC Sierra 1500 SLE 4WD DIESEL Front and Rear 4"
