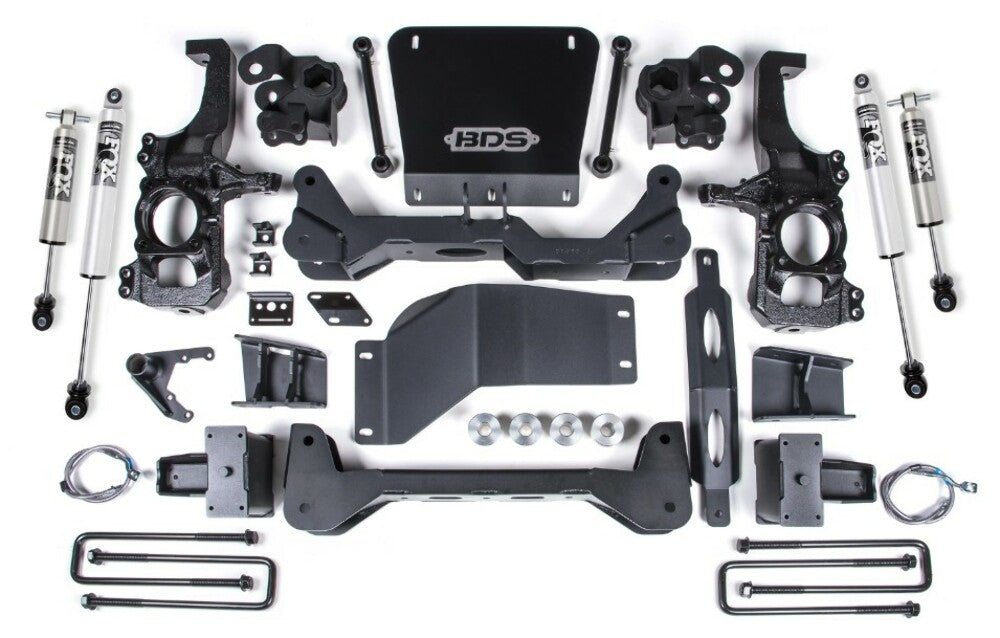

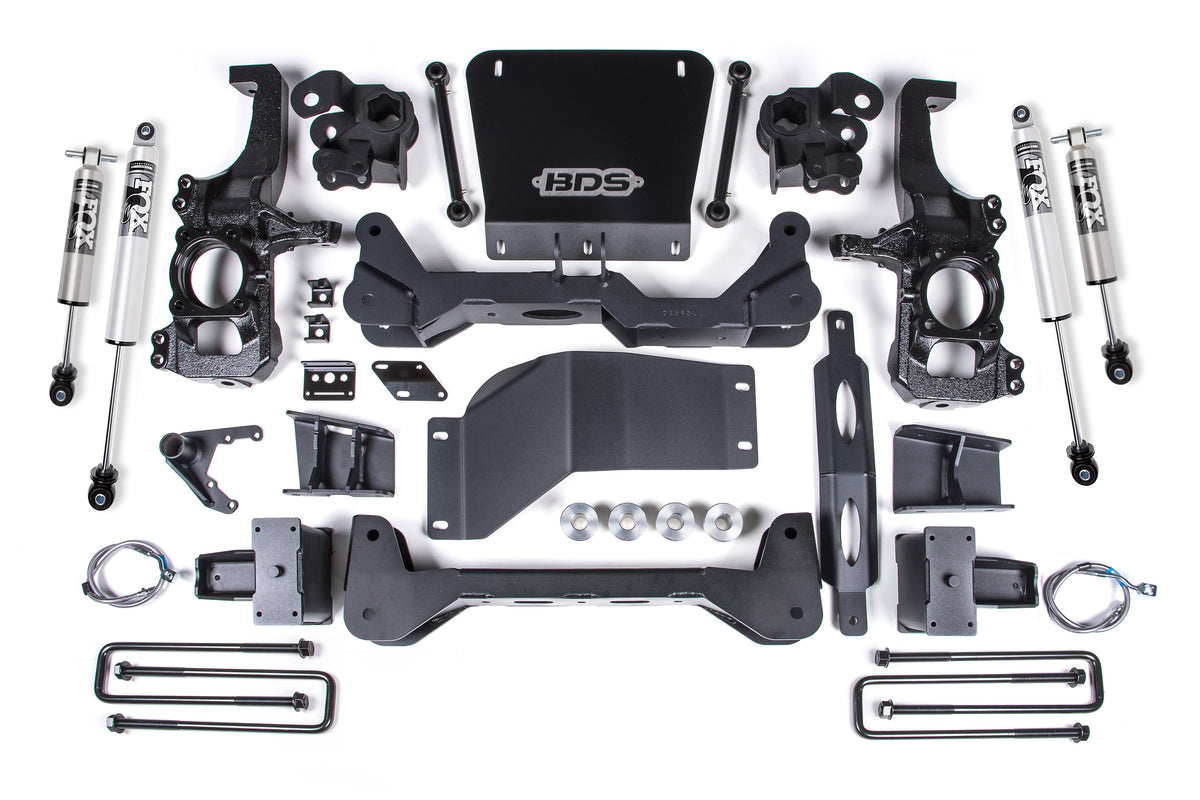

2020-2025 Chevrolet Silverado/GMC Sierra 2500HD/3500HD 4wd, 6.5" Suspension Lift System, 6" Rear Lift, Block, w/ overload - Fox 2.5 PS HTO Shocks Front/Rear

2020-2025 Chevrolet Silverado/GMC Sierra 2500HD/3500HD 4wd, 6.5" Suspension Lift System, 6" Rear Lift, Block, w/ overload - Fox 2.5 PS HTO Shocks Front/Rear

by BDS Suspension
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BDSS_BDS756FPP
Sold out
$0.00 - $0.00
$3,329.51
$3,329.51 - $3,329.51
$3,329.51
Availability:
Out of stock
Request a quote

Product Tags:

OVERVIEW

Take your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 5-inch lift kit by BDS Suspension. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. Designed to improve the stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great onroad handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of FOX 2.5 Performance Series HTO shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

FOX 2.5 Performance Series HTO Shocks

The FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

IMPORTANT NOTES

  1. Requires frame bracket modification.
  2. Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is #CH48809.
  3. Models with twopiece rear driveshafts will require a carrier bearing drop kit.
  4. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
  5. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
  6. Some minor trimming will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
  7. Will NOT work with AT4X or ZR2 models, lower control arm profile is different


INSTALLATION

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult


SPECIFICATION

  • Front Lift Method : Cross-Member
  • Front Lift Height : 6.5"
  • Rear Lift Method : Block
  • Rear Lift Height : 6"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"


FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2020 Chevrolet Silverado 2500 HD High Country 4WD DIESEL Front and Rear 6.5"
2020 Chevrolet Silverado 3500 HD WT 4WD DIESEL Front and Rear 6.5"
2020 Chevrolet Silverado 2500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2020 GMC Sierra 2500 HD ALL 4WD DIESEL Front and Rear 6.5"
2020 Chevrolet Silverado 3500 HD LT 4WD DIESEL Front and Rear 6.5"
2020 Chevrolet Silverado 2500 HD LT 4WD DIESEL Front and Rear 6.5"
2020 Chevrolet Silverado 3500 HD High Country 4WD DIESEL Front and Rear 6.5"
2020 GMC Sierra 3500 HD ALL 4WD DIESEL Front and Rear 6.5"
2020 Chevrolet Silverado 2500 HD WT 4WD DIESEL Front and Rear 6.5"
2020 Chevrolet Silverado 3500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2021 GMC Sierra 3500 HD ALL 4WD DIESEL Front and Rear 6.5"
2021 Chevrolet Silverado 3500 HD LT 4WD DIESEL Front and Rear 6.5"
2021 Chevrolet Silverado 2500 HD ALL 4WD DIESEL Front and Rear 6.5"
2021 Chevrolet Silverado 3500 HD WT 4WD DIESEL Front and Rear 6.5"
2021 Chevrolet Silverado 3500 HD High Country 4WD DIESEL Front and Rear 6.5"
2021 Chevrolet Silverado 3500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2021 GMC Sierra 2500 HD ALL 4WD DIESEL Front and Rear 6.5"
2022 Chevrolet Silverado 2500 HD ALL 4WD DIESEL Front and Rear 6.5"
2022 GMC Sierra 2500 HD ALL 4WD DIESEL Front and Rear 6.5"
2022 Chevrolet Silverado 3500 HD LT 4WD DIESEL Front and Rear 6.5"
2022 GMC Sierra 3500 HD ALL 4WD DIESEL Front and Rear 6.5"
2022 Chevrolet Silverado 3500 HD WT 4WD DIESEL Front and Rear 6.5"
2022 Chevrolet Silverado 3500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2022 Chevrolet Silverado 3500 HD High Country 4WD DIESEL Front and Rear 6.5"
2023 Chevrolet Silverado 2500 HD ALL 4WD DIESEL Front and Rear 6.5"
2023 Chevrolet Silverado 3500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2023 Chevrolet Silverado 3500 HD LT 4WD DIESEL Front and Rear 6.5"
2023 GMC Sierra 3500 HD ALL 4WD DIESEL Front and Rear 6.5"
2023 Chevrolet Silverado 3500 HD WT 4WD DIESEL Front and Rear 6.5"
2023 Chevrolet Silverado 3500 HD High Country 4WD DIESEL Front and Rear 6.5"
2023 GMC Sierra 2500 HD ALL 4WD DIESEL Front and Rear 6.5"
2024 GMC Sierra 2500 HD Pro 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 3500 HD High Country 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 3500 HD LT 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 2500 HD High Country 4WD DIESEL Front and Rear 6.5"
2024 GMC Sierra 2500 HD Denali 4WD DIESEL Front and Rear 6.5"
2024 GMC Sierra 2500 HD SLT 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 2500 HD LT 4WD DIESEL Front and Rear 6.5"
2024 GMC Sierra 2500 HD AT4 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 3500 HD WT 4WD DIESEL Front and Rear 6.5"
2024 GMC Sierra 2500 HD SLE 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 3500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2024 GMC Sierra 2500 HD Denali Ultimate 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 2500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 2500 HD WT 4WD DIESEL Front and Rear 6.5"
2024 GMC Sierra 3500 HD ALL 4WD DIESEL Front and Rear 6.5"
2024 Chevrolet Silverado 2500 HD Custom 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 3500 HD LT 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 3500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2025 GMC Sierra 2500 HD Pro 4WD DIESEL Front and Rear 6.5"
2025 GMC Sierra 2500 HD SLE 4WD DIESEL Front and Rear 6.5"
2025 GMC Sierra 2500 HD Denali Ultimate 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 2500 HD LTZ 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 2500 HD High Country 4WD DIESEL Front and Rear 6.5"
2025 GMC Sierra 2500 HD SLT 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 2500 HD WT 4WD DIESEL Front and Rear 6.5"
2025 GMC Sierra 2500 HD AT4 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 2500 HD LT 4WD DIESEL Front and Rear 6.5"
2025 GMC Sierra 3500 HD ALL 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 3500 HD WT 4WD DIESEL Front and Rear 6.5"
2025 GMC Sierra 2500 HD Denali 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 2500 HD Custom 4WD DIESEL Front and Rear 6.5"
2025 Chevrolet Silverado 3500 HD High Country 4WD DIESEL Front and Rear 6.5"
