Description

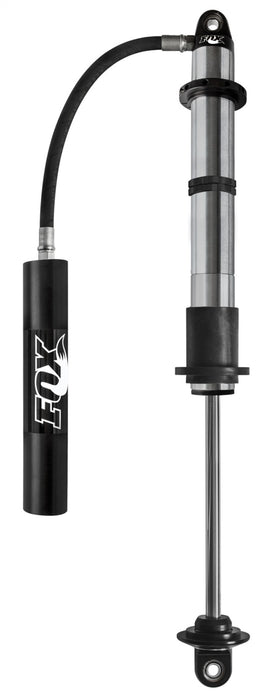

Off-road Performance Series coil-over shocks take advantage of our tried-and-true coil-over design and incorporate features like rubber braided steel hoses with high-flow fittings for improved durability and performance.
Pinch-bolt spring preload rings allow easy ride height and preload adjustment and retain the top quality racing coil selected to deliver your optimal spring rate. Our off-road Performance Series coil-over shocks will suspend your vehicle's weight and provide our race-proven, performance damping technology to tame the toughest terrain. If you are looking for a comfortable ride and predictable off-road handling, look no further.
Features
| Body | Smoothbore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated for a long-lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston | Race-developed high flow design |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | Redundant sealing pack system, main seal, wiper seal, scraper seal* |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Shafts | 17-4 H900 hard chrome-plated stainless steel |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| Spring | Not Included |
| Adjustments | Spring preload ring |
| Dual-stage crossover ring | |
| Extended | 37.450 |
| Compressed | 23.440 |
| Travel | 14.010 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Remote |
| Reservoir Size | 2.5 x 14.00 |
| Hose | -8 x 18.0 |
| Mounting | 1/2 x 1.50 |
| Valving | 50/70 |
Shipping
LENGTH 47.75 in.
WIDTH 6.87 in.
HEIGHT 4.75 in.
WEIGHT 15.00 lbs.
DIM WEIGHT 7 lbs
